Pumps for Pharmaceutical

Hygienic and precision pumping solutions for pharmaceutical manufacturing and API production.

Industry Overview

The pharmaceutical industry requires pumps that meet stringent hygiene standards, handle sensitive biological and chemical products, and provide precise dosing capabilities. Contamination prevention, cleanability, and compliance with cGMP regulations are critical requirements.

Key Challenges

  • Hygienic design with clean-in-place (CIP) capability
  • Gentle handling of shear-sensitive products
  • Precise flow control for dosing applications
  • Zero leakage for expensive and hazardous API materials
  • Compliance with FDA and cGMP regulations

Our Solutions

China Industrial Pump Network provides stainless steel magnetic drive pumps, centrifugal pumps, and positive displacement pumps for pharmaceutical applications. Our pumps feature electropolished surfaces, hygienic mechanical seals, and magnetic drive seal-less designs to prevent contamination and ensure product purity.

Need a Custom Solution?

Our engineering team can help you select the right pump for your specific requirements.

Contact Our Engineer

Quick Inquiry

Tell us your requirements and get a quote within 24 hours.

Request a Quote
SELECTION GUIDE

Pump Selection for Pharmaceutical

Pharmaceutical pump selection prioritizes hygienic design, cleanability, product integrity, and regulatory compliance. Material selection, surface finish, and seal design are critical for cGMP and FDA compliance.

Hygienic Design

Specify 3-A certified or EHEDG compliant designs. Ra 0.8um surface finish minimum, electropolished for high-purity. No dead legs, crevices, or shadow areas. Fully drainable with no horizontal pockets.

Material Compliance

316L stainless steel standard for product contact. FDA-compliant elastomers (EPDM, silicone, PTFE). Avoid materials that may leach or adsorb product. Verify material certificates (EN 10204 3.1).

CIP/SIP Capability

Pump must withstand Clean-in-Place (80C caustic) and Sterilization-in-Place (121C steam, 30 min). Specify CIP flow rates to achieve turbulent cleaning (Re > 3000). Verify thermal shock resistance.

Shear Sensitivity

For biotech products, cell cultures, and proteins, use low-shear positive displacement pumps (lobe, progressive cavity). Avoid high-shear gear pumps. Calculate shear rate at impeller tip.

Sealing for Sterility

Use single mechanical seals with sterile barrier for aseptic service. Double seals with sterile barrier fluid for high-containment. Avoid packing in pharmaceutical product contact.

Documentation & Validation

Require FDA 21 CFR Part 177 material compliance, ISO 9001, and quality manuals. Provide IQ/OQ documentation, material traceability, and surface finish test reports.

Recommended Products

Pumps for Pharmaceutical

Carefully selected pump models that meet the specific requirements of the Pharmaceutical industry.

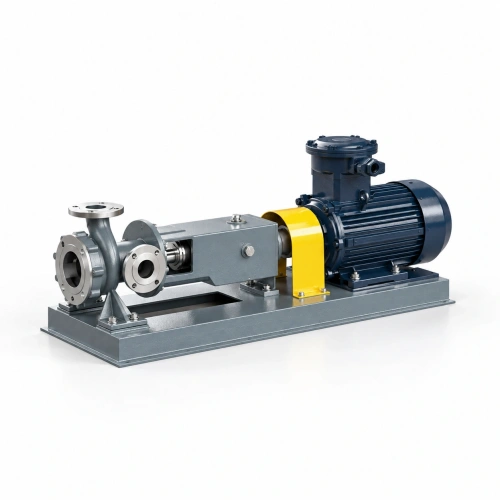

API 610 Process Pumps Leak-Free Chemical Process Pump

Leak-Free Chemical Process Pump

Industrial Standard Chemical Process Pump

View Details Inquire
Chemical Centrifugal Pumps Chemical Centrifugal Pump

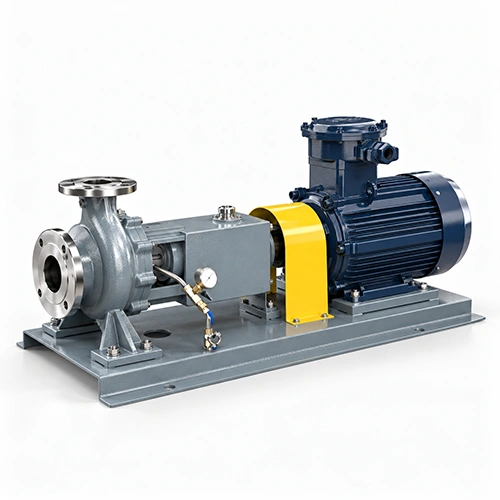

Chemical Centrifugal Pump

ISO 2858 Standard Chemical Process Pump

View Details Inquire
Chemical Centrifugal Pumps Fluoroplastic Chemical Pump

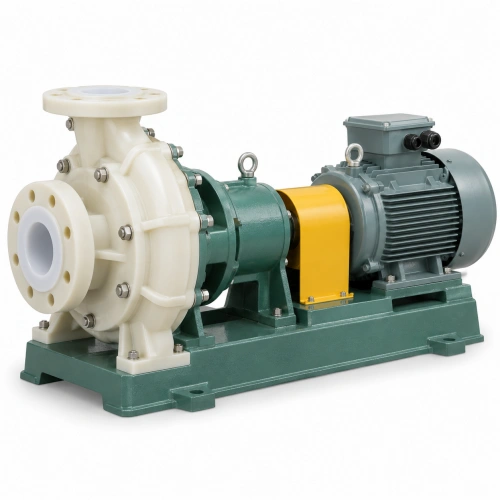

Fluoroplastic Chemical Pump

PTFE-Lined Centrifugal Pump for Corrosive Chemicals

View Details Inquire

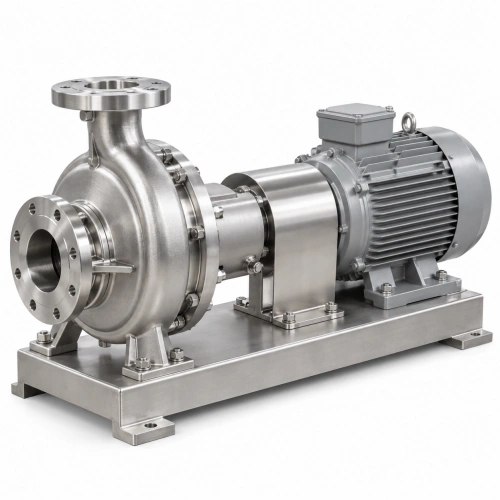

Chemical Centrifugal Pumps Corrosion-Resistant Chemical Pump

Corrosion-Resistant Chemical Pump

316L Stainless Steel Centrifugal Pump for Corrosive Chemicals

View Details Inquire
Chemical Centrifugal Pumps Sanitary Centrifugal Pump

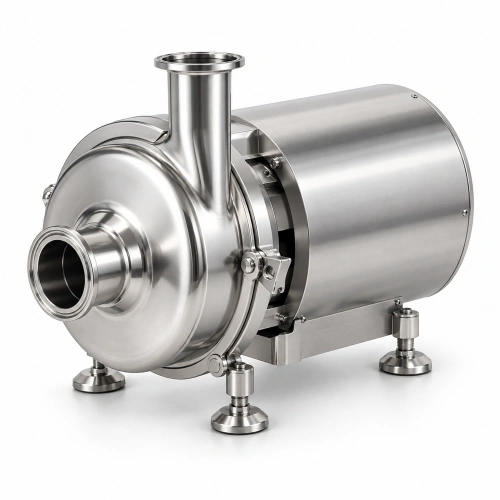

Sanitary Centrifugal Pump

Hygienic 3A Certified Centrifugal Pump

View Details Inquire
Chemical Centrifugal Pumps Stainless Steel Chemical Pump

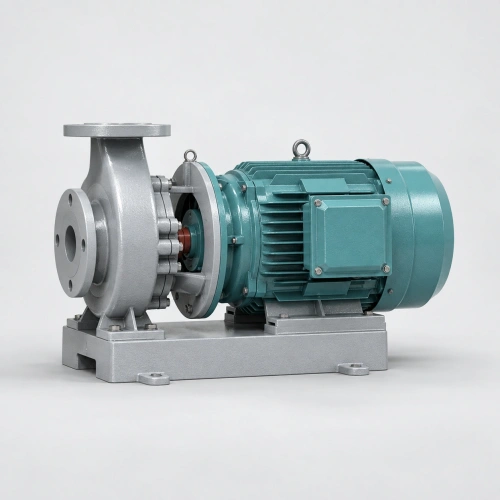

Stainless Steel Chemical Pump

ISO 2858 Standard Chemical Centrifugal Pump

View Details Inquire

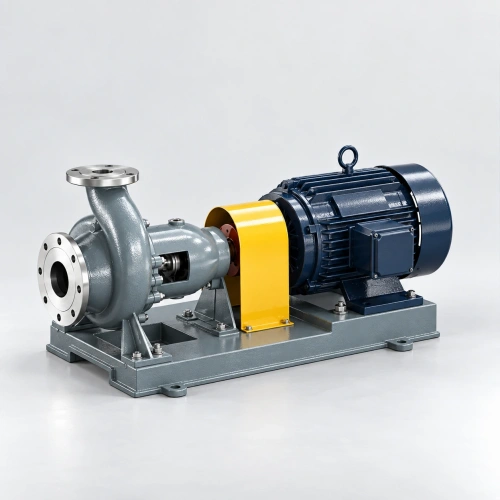

Chemical Centrifugal Pumps Stainless Steel Chemical Centrifugal Pump

Stainless Steel Chemical Centrifugal Pump

ISO 2858 Standard Chemical Centrifugal Pump

View Details Inquire
Chemical Centrifugal Pumps Fluorine Lined Chemical Pump

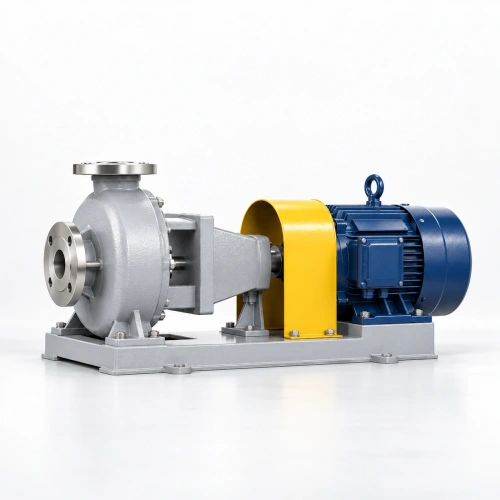

Fluorine Lined Chemical Pump

ISO 2858 Standard Chemical Centrifugal Pump

View Details Inquire
Vertical & Sump Pumps Stainless Steel Vertical Sump Pump

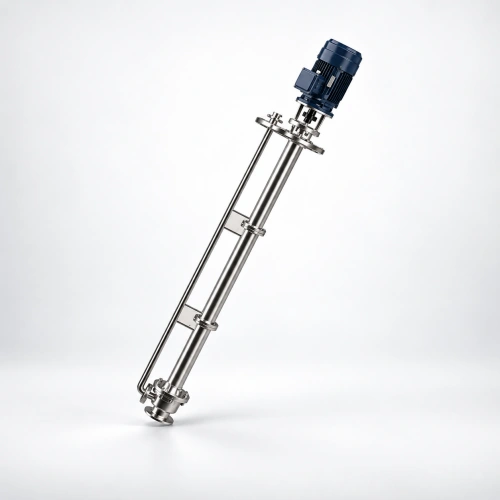

Stainless Steel Vertical Sump Pump

Vertical Submerged Sump Pump for Deep Tanks

View Details Inquire

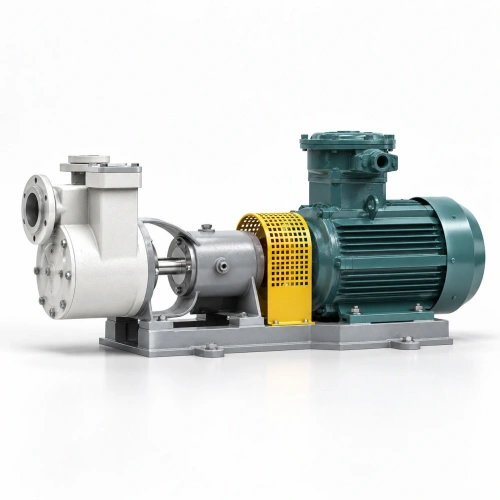

Self Priming Pumps Fully Fluoroplastic Self Priming Pump

Fully Fluoroplastic Self Priming Pump

Self-Priming Pump for Flexible Installation

View Details Inquire
Self Priming Pumps Stainless Steel Self Priming Pump

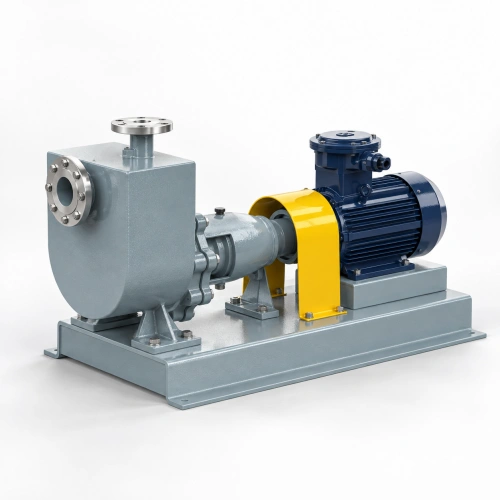

Stainless Steel Self Priming Pump

Self-Priming Pump for Flexible Installation

View Details Inquire
Magnetic Drive Pumps Magnetic Drive Chemical Pump

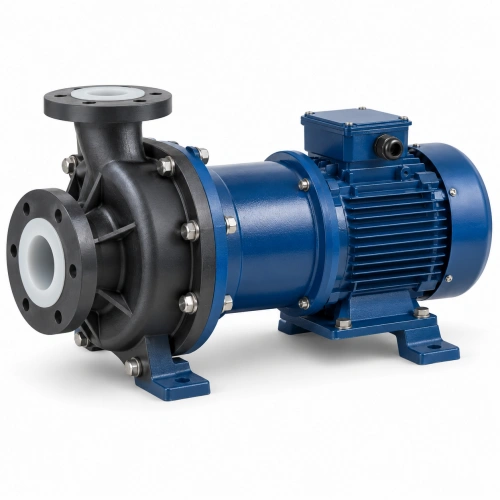

Magnetic Drive Chemical Pump

Sealless Leak-Free Centrifugal Pump for Hazardous Chemicals

View Details Inquire
Magnetic Drive Pumps Magnetic Drive Pump

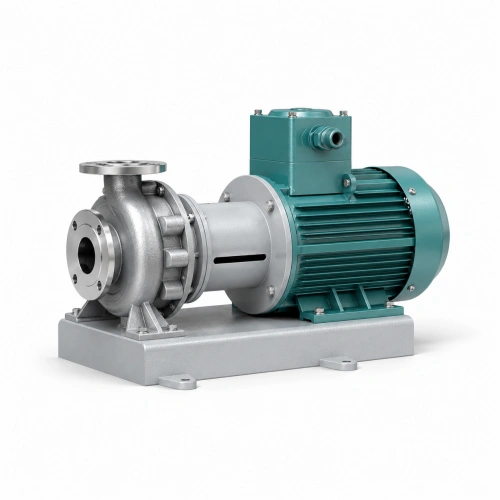

Magnetic Drive Pump

Seal-less Magnetic Drive Pump for Zero Leakage

View Details Inquire
Magnetic Drive Pumps Fluoroplastic Magnetic Drive Pump

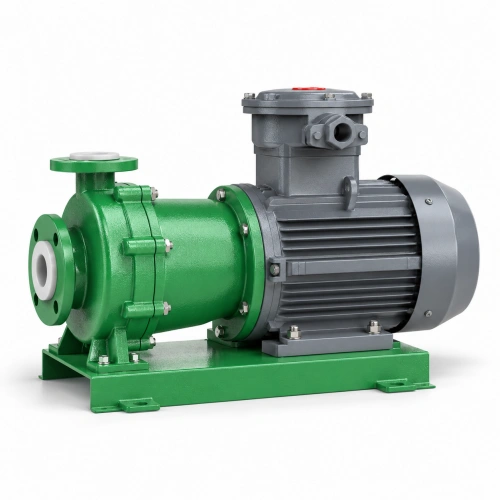

Fluoroplastic Magnetic Drive Pump

Seal-less Magnetic Drive Pump for Zero Leakage

View Details Inquire
Magnetic Drive Pumps Jacketed Magnetic Drive Pump

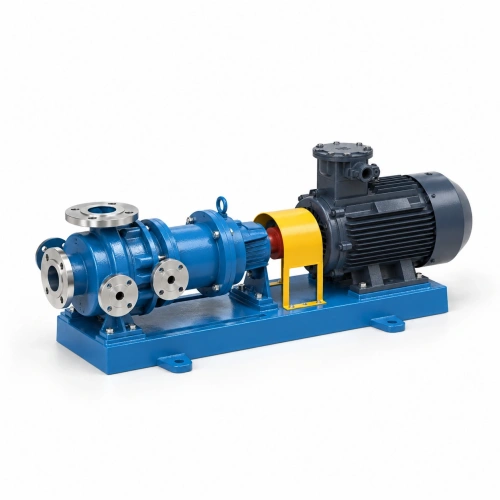

Jacketed Magnetic Drive Pump

Seal-less Magnetic Drive Pump for Zero Leakage

View Details Inquire

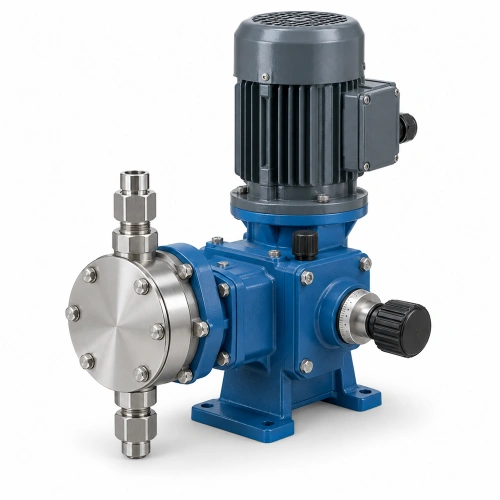

Positive Displacement Pumps Diaphragm Metering Pump

Diaphragm Metering Pump

Precision Chemical Dosing Pump

View Details Inquire
Positive Displacement Pumps Peristaltic Hose Pump

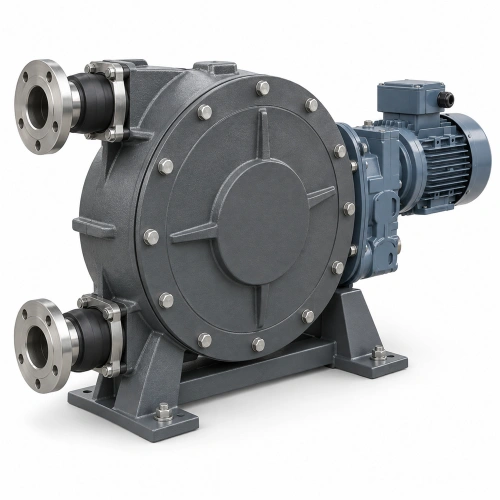

Peristaltic Hose Pump

Hose / Tube Pump for Shear-Sensitive Fluids

View Details Inquire

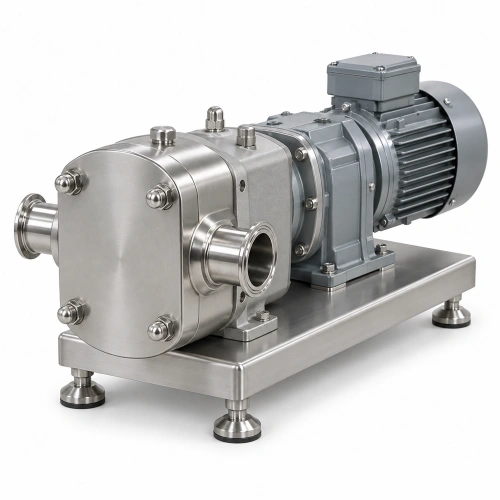

Positive Displacement Pumps Rotary Lobe Pump

Rotary Lobe Pump

Positive Displacement Lobe Pump for Viscous Fluids

View Details Inquire

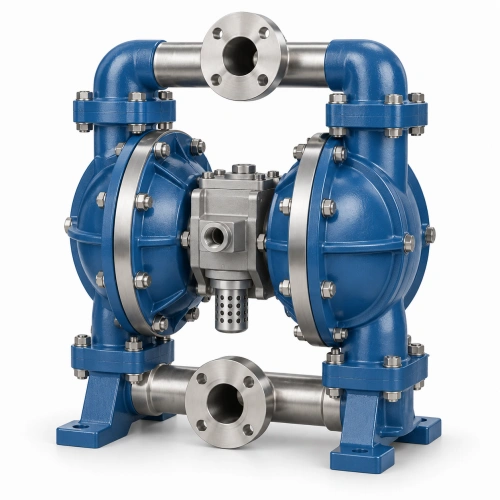

Positive Displacement Pumps Pneumatic Double Diaphragm Pump

Pneumatic Double Diaphragm Pump

Air-Operated Double Diaphragm (AODD) Positive Displacement Pump

View Details Inquire
Special Industrial Pumps Liquid Ring Vacuum Pump

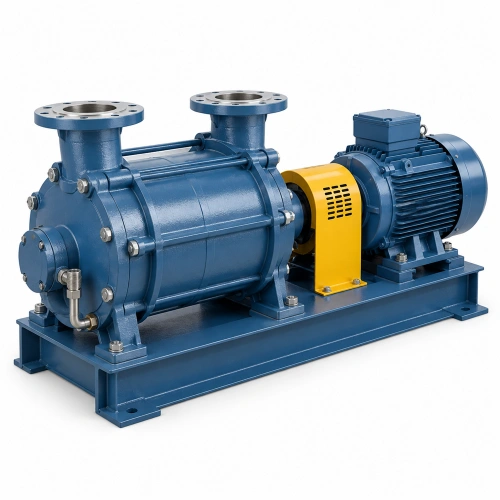

Liquid Ring Vacuum Pump

Oil-Free Vacuum Pump for Wet Gas Applications

View Details Inquire

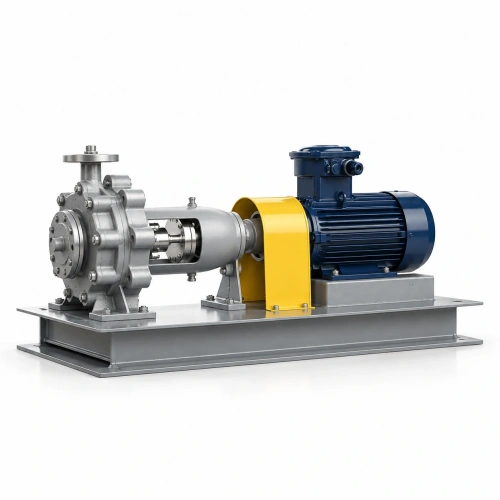

Special Industrial Pumps Low Flow High Head Tangential Flow Pump

Low Flow High Head Tangential Flow Pump

Specialized Industrial Pump for Unique Applications

View Details Inquire
Positive Displacement Pumps Sanitary Single Screw Pump

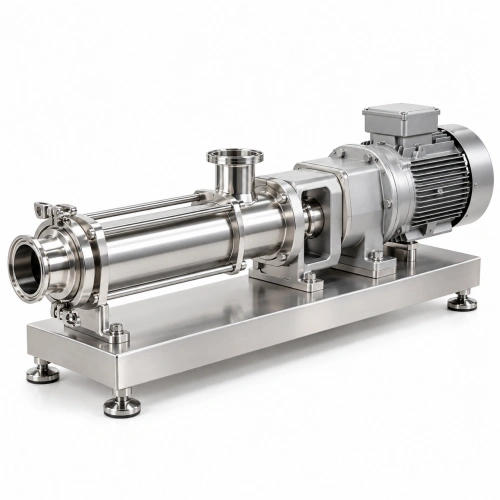

Sanitary Single Screw Pump

Hygienic Progressive Cavity Pump for Viscous Media

View Details Inquire
Positive Displacement Pumps Sanitary Twin Screw Pump

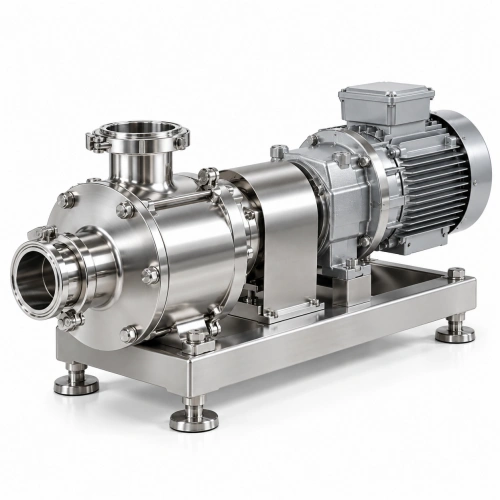

Sanitary Twin Screw Pump

Dual-Function Hygienic Process & CIP Pump

View Details Inquire
