Industry Overview

The food and beverage industry requires pumps that meet strict hygiene standards, handle shear-sensitive products gently, and provide reliable service in clean production environments. From dairy processing to beverage bottling, pump selection impacts product quality and production efficiency.

Key Challenges

Hygienic design with CIP/SIP capability
Gentle handling of shear-sensitive products
Compliance with FDA and 3-A sanitary standards
Handling of viscous products and particulates
Easy disassembly for cleaning and maintenance

Our Solutions

China Industrial Pump Network provides stainless steel centrifugal pumps, positive displacement screw pumps, and self-priming pumps for food and beverage applications. Our pumps feature polished stainless steel construction, hygienic seals, and gentle hydraulic designs to preserve product quality.

SELECTION GUIDE

Pump Selection for Food & Beverage

Food and beverage pump selection requires hygienic design, gentle product handling, and compliance with FDA and 3-A standards. Consider product viscosity, shear sensitivity, particulate content, and CIP/SIP compatibility.

Product Viscosity

Low viscosity (water, juice): centrifugal pumps. Medium (syrup, cream): rotary lobe. High (chocolate, dough): progressive cavity or screw pump. Reduce speed for viscosity above 1,000 cP.

Shear Sensitivity

Shear-sensitive products (yogurt, cream, cell cultures) require low-shear positive displacement pumps. Lobe pumps provide gentlest handling. Avoid centrifugal pumps for shear-sensitive products.

Particulate Handling

Products with particles (fruit chunks, meat, olive oil with sediment) need large passages and gentle pumping. Progressive cavity or lobe pumps with generous ball passages. Avoid tight clearances.

Hygienic Construction

3-A certified design, Ra 0.8um finish, electropolished optional. All internal corners radiused (minimum 3mm). No dead zones. Fully drainable. Quick-release connections for disassembly.

CIP/SIP Compatibility

Pump must withstand CIP chemicals (1-2% caustic at 80C) and SIP (121C steam, 30 min). Specify CIP flow rates for turbulent cleaning. Verify elastomer resistance to cleaning chemicals and temperature.

Material & Elastomer Compliance

316L stainless steel product contact. FDA-compliant elastomers: EPDM (water/steam), FKM (fats/oils), silicone (high temp), PTFE (chemical). Avoid materials that may taint flavor.

Hygienic Progressive Cavity Pump for Viscous Media

View Details Inquire

Positive Displacement Pumps

Sanitary Twin Screw Pump

Dual-Function Hygienic Process & CIP Pump

View Details Inquire

Pumps for Food & Beverage

Industry Overview

Key Challenges

Our Solutions

Need a Custom Solution?

Quick Inquiry

Pump Selection for Food & Beverage

Product Viscosity

Shear Sensitivity

Particulate Handling

Hygienic Construction

CIP/SIP Compatibility

Material & Elastomer Compliance

Pumps for Food & Beverage

Corrosion-Resistant Chemical Pump

Sanitary Centrifugal Pump

Stainless Steel Chemical Pump

Stainless Steel Self Priming Pump

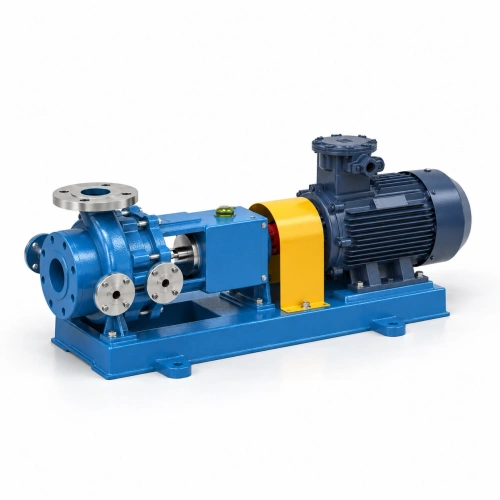

Jacketed Insulated Centrifugal Pump

Screw Pump

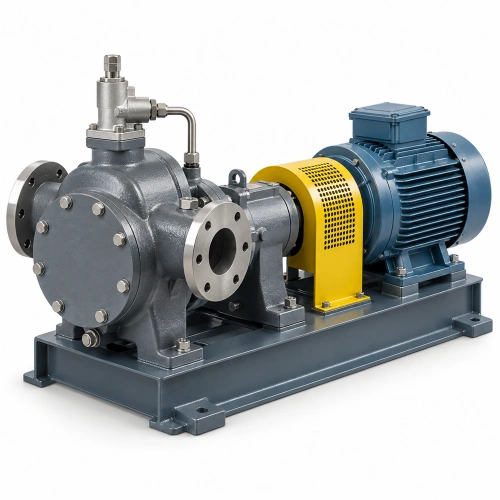

Internal Gear Pump
