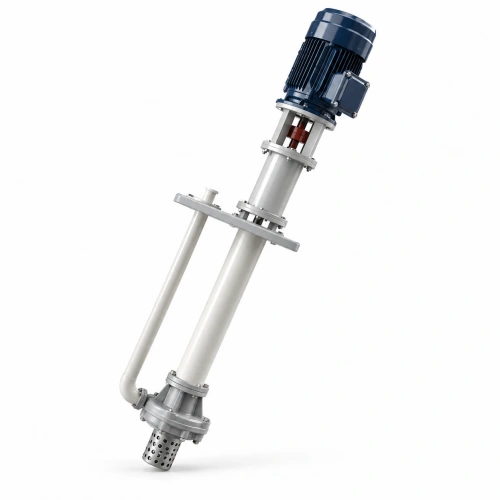

Fluoroplastic Alloy Vertical Sump Pump
Vertical Submerged Sump Pump for Deep Tanks
The Fluoroplastic Alloy Vertical Sump Pump is a vertical submerged sump pump designed for underground tanks, pits, and sumps in chemical and industrial facilities. It requires no priming and offers customizable immersion depth.
Product Specifications
| Flow Rate | 1 - 100 m³/h |
|---|---|
| Head | 10 - 60 m |
| Power | 0.75 - 22 kW |
| Speed | 1450 / 2900 rpm |
| Casing Material | Fluoroplastic Alloy (FRP) |
| Impeller Material | Fluoroplastic Alloy |
| Immersion Depth | 0.5 - 3 m |
| Max Temperature | 100 °C |
| Max Pressure | 0.6 MPa |
| Seal Type | Mechanical Seal / No Seal |
| Standard | Industrial Standard |
Product Description
The Fluoroplastic Alloy Vertical Sump Pump is a corrosion-resistant vertical submerged pump with fluoroplastic alloy (FRP) wetted components for highly aggressive chemical service. Its non-metallic construction withstands strong acids, alkalis, and oxidizing agents that would degrade metallic pumps. The pump handles flow rates from 1 to 100 m³/h at temperatures to 100°C, with the vertical column immersed directly in the corrosive fluid. Ideal for acid storage tanks, chemical processing sumps, and electroplating applications.
Applications
- Strong acid transfer (sulfuric, hydrochloric)
- Electroplating industry
- Metal surface treatment
- Chemical waste treatment
- Fertilizer production
- Chlor-alkali plants
Quality Assurance
All Fluoroplastic Alloy Vertical Sump Pumps are manufactured under ISO 9001 quality management system. Each pump undergoes rigorous testing including hydrostatic pressure test, performance test, NDT inspection, and dynamic balance verification before shipment. We provide comprehensive documentation including test reports, material certificates, and operation manuals.
Why Choose Our Vertical & Sump Pumps
Fluoroplastic Alloy Vertical Sump
Fluoroplastic lined vertical sump pump for corrosive below-grade service, combining PTFE/PFA lining with alloy structural strength.
Full Fluoroplastic Lining
All wetted surfaces including column pipe and shaft sleeve lined with fluoropolymer, ensuring complete corrosion protection.
Submerged Impeller
Impeller operates below liquid surface, no priming required, suitable for corrosive sump and tank service in chemical plants.
Spark Tested Integrity
All fluoroplastic linings undergo high-voltage spark testing to verify integrity, preventing process fluid contact with metal substrate.
Key Features
Frequently Asked Questions
What fluids are fluoroplastic sump pumps suitable for?
What is the maximum temperature for fluoroplastic-lined sump pumps?
Can fluoroplastic sump pumps handle solids?
How is the fluoroplastic lining bonded to the metal?
Selection Guide
✅ When to Choose This Pump
- Below-grade tanks, pits, and sumps
- Corrosive waste collection and transfer
- Applications where NPSH is very low
- Plating tanks and chemical process vessels
⚠️ When NOT to Choose
- Above-ground installation (use horizontal pump)
- High-pressure multistage requirements
- Solids larger than 10% by weight
- Applications requiring frequent dry running
💡 Common Selection Mistakes
- Not specifying correct immersion depth
- Using standard bearings for corrosive vapor
- Ignoring shaft deflection at long lengths
- Not providing proper venting for submerged seal
